FSA E-bike system

250W motor

250Wh in tube battery

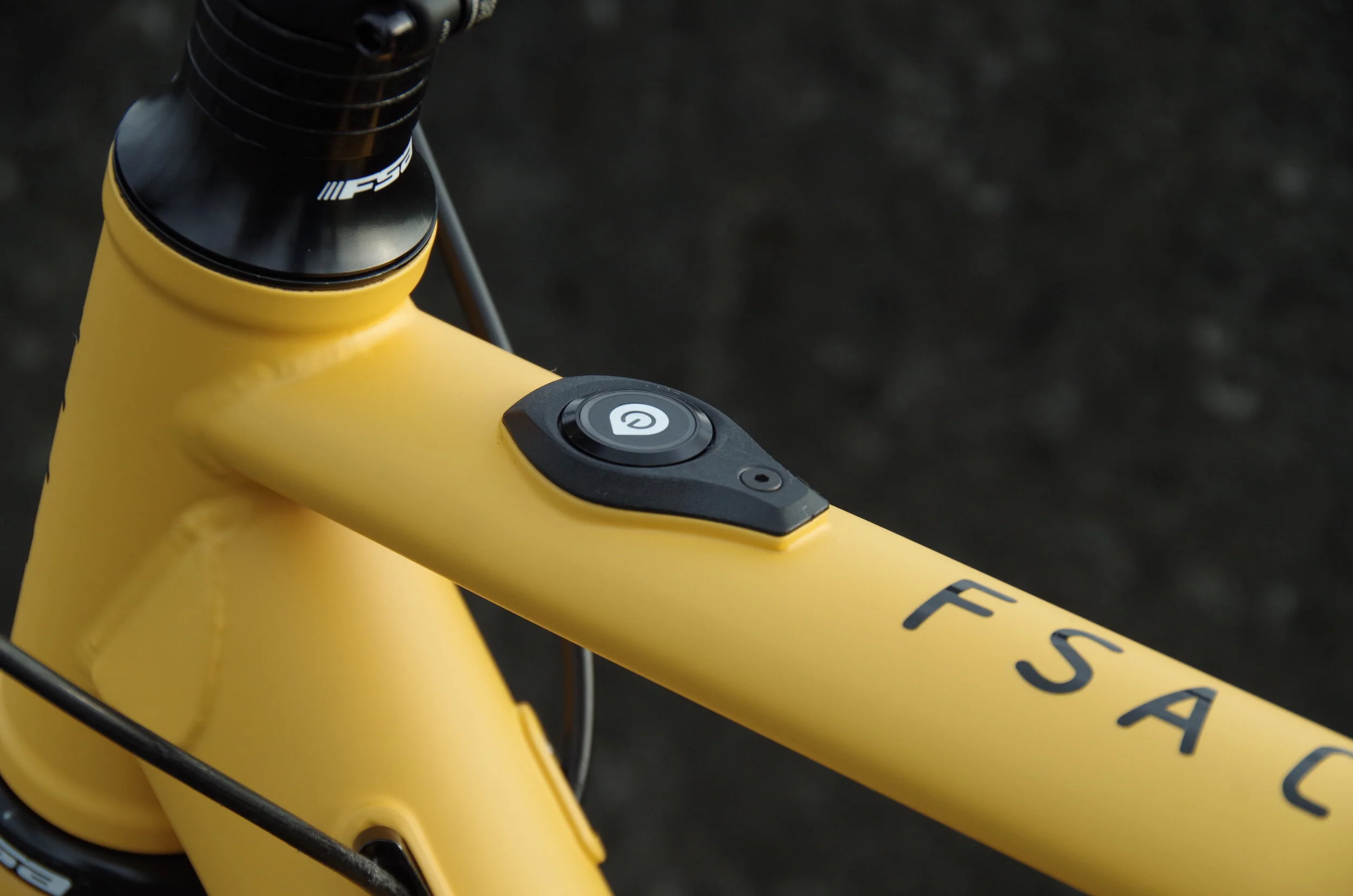

Bluetooth compatibility

Cr-moly SAE4130 tubing

Internal routing brake and shifting

Tire Clearance (Max), 700x32 without fender

Fork Length, 374mm

Fork Offset, 45mm

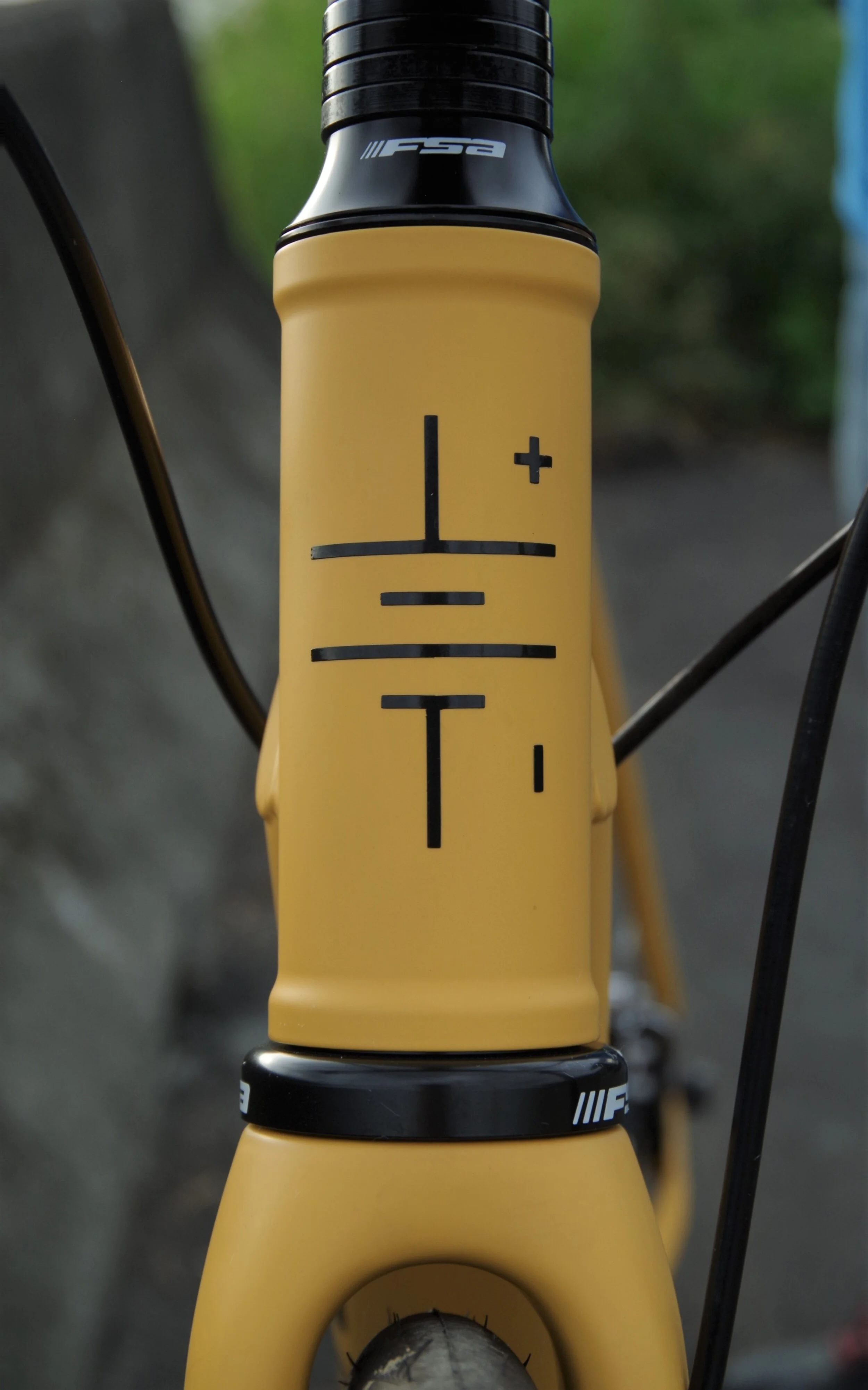

Headset, ZS44/EC44

Seat post, 27.2mm

Seat Collar, 30mm

Front Derailleur mount, band clamp 28.6mm

Bottom Bracket, 68mm BSA threaded

Crankset(Max), 44t 1x Crankset, 53/39t 2x Crankset

Rear brake, 140mm flat mount, 160mm with adapter

Rear Spacing, 135mm

Rear axle size, 10x135mm QR or solid axle

Crown race, 39.8mm

Front spacing, 100mm

Front axle, M12x1.5p
