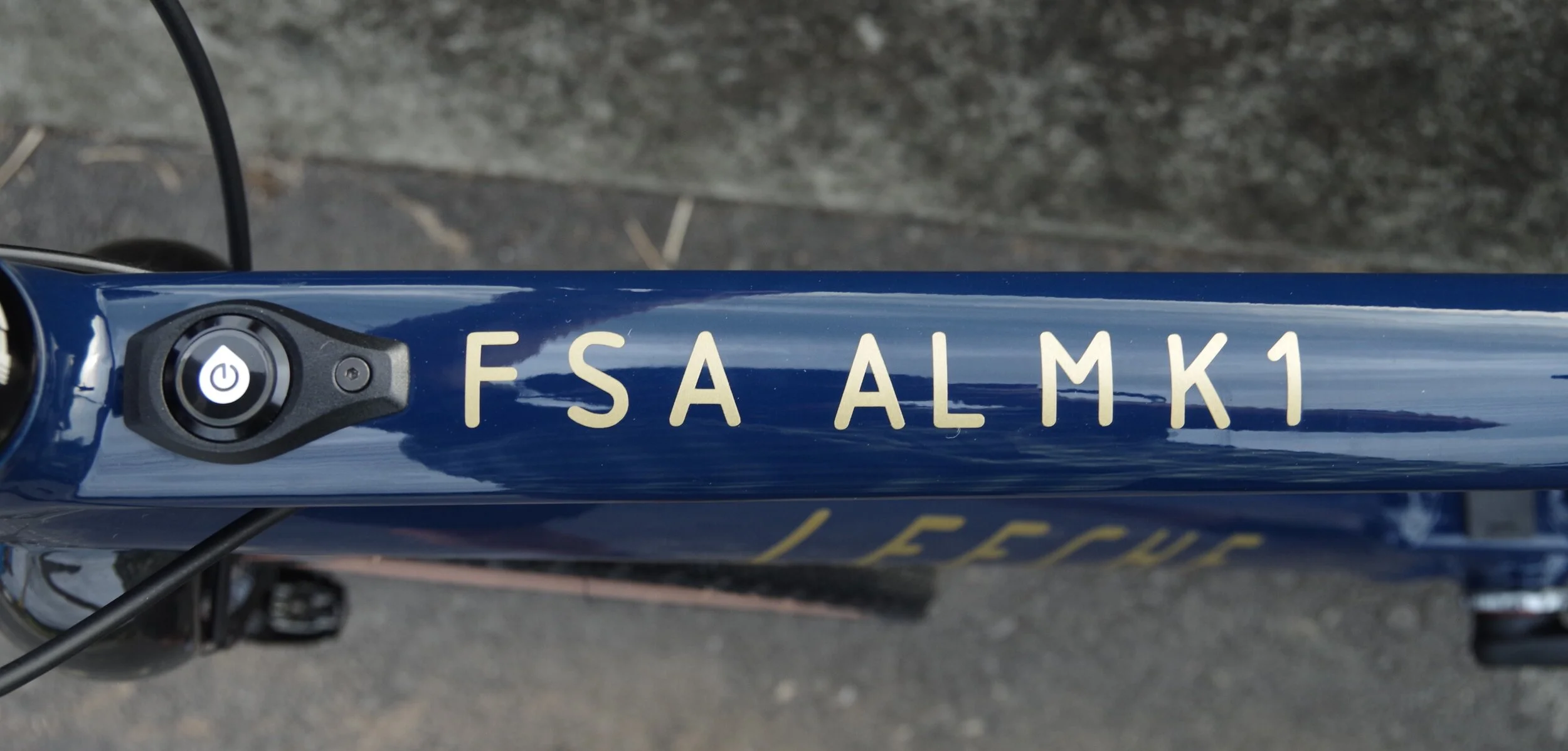

FSA Ebike system

250W

250Wh in tube battery

AL6061-T6 tubing

Internal routing brake and shifting

Tire Clearance (Max), 700x42 without fender or 650x47 without fender

Fork Length, 400mm

Fork Offset, 45mm

Headset, IS42/IS52

Seat post, 30.9mm

Seat Collar, 34.9mm

Front Derailleur mount, band clamp 34.9mm

Bottom Bracket, 68mm BSA threaded

Crankset(Max), 44t 1x Crankset

Rear brake, 140mm flat mount, 160mm with adapter

Rear Spacing, 135mm

Rear axle size, 10x135mm QR or solid axle

Crown race, 39.8mm

Front spacing, 100mm

Front axle, M12x1.5p
